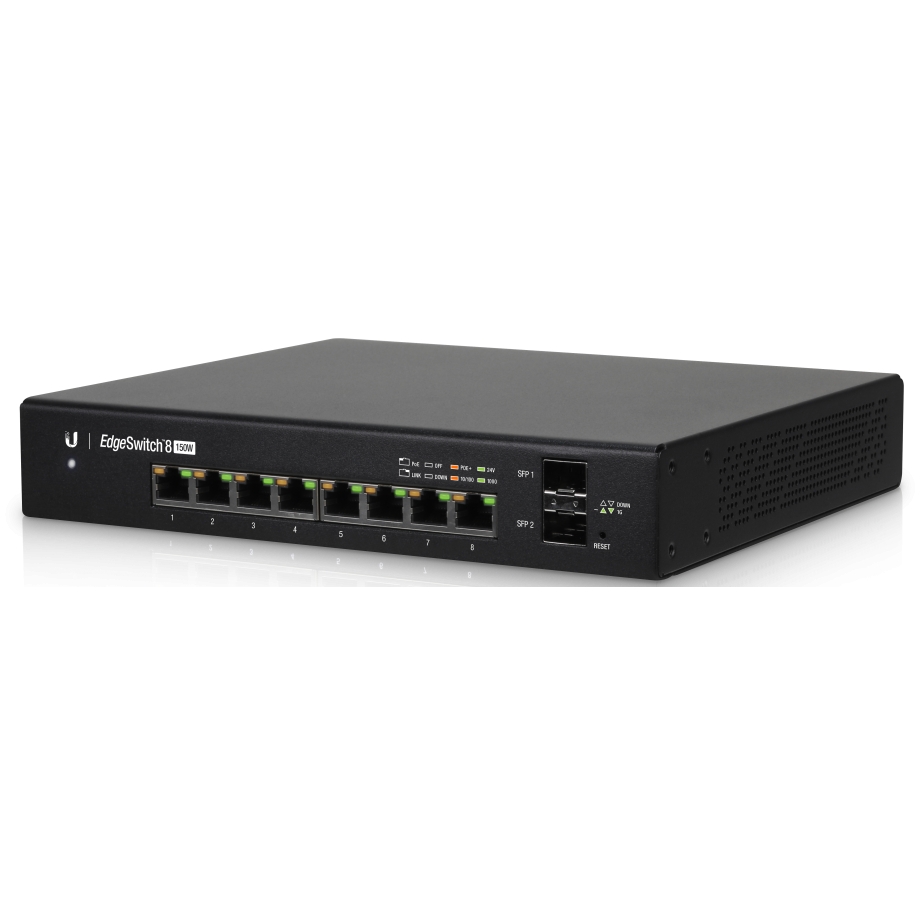

Ubiquiti EdgeSwitch 8 PoE
Selle üksuse tootmine on lõpetatud
Soovitame kasutada allpool esitatud toodet
Saadaolevad alternatiivid
Detailne kirjeldus
Juhitav PoE+ Gigabit-kommutaator SFP-ga
EdgeSwitch 8-150W on varustatud suure jõudlusega riistvaraga, mis on piisav, et tagada pakettide töötlemise kiirus 14,88 Mpps. Samal ajal ulatub läbilaskevõime 10 Gbps-ni.

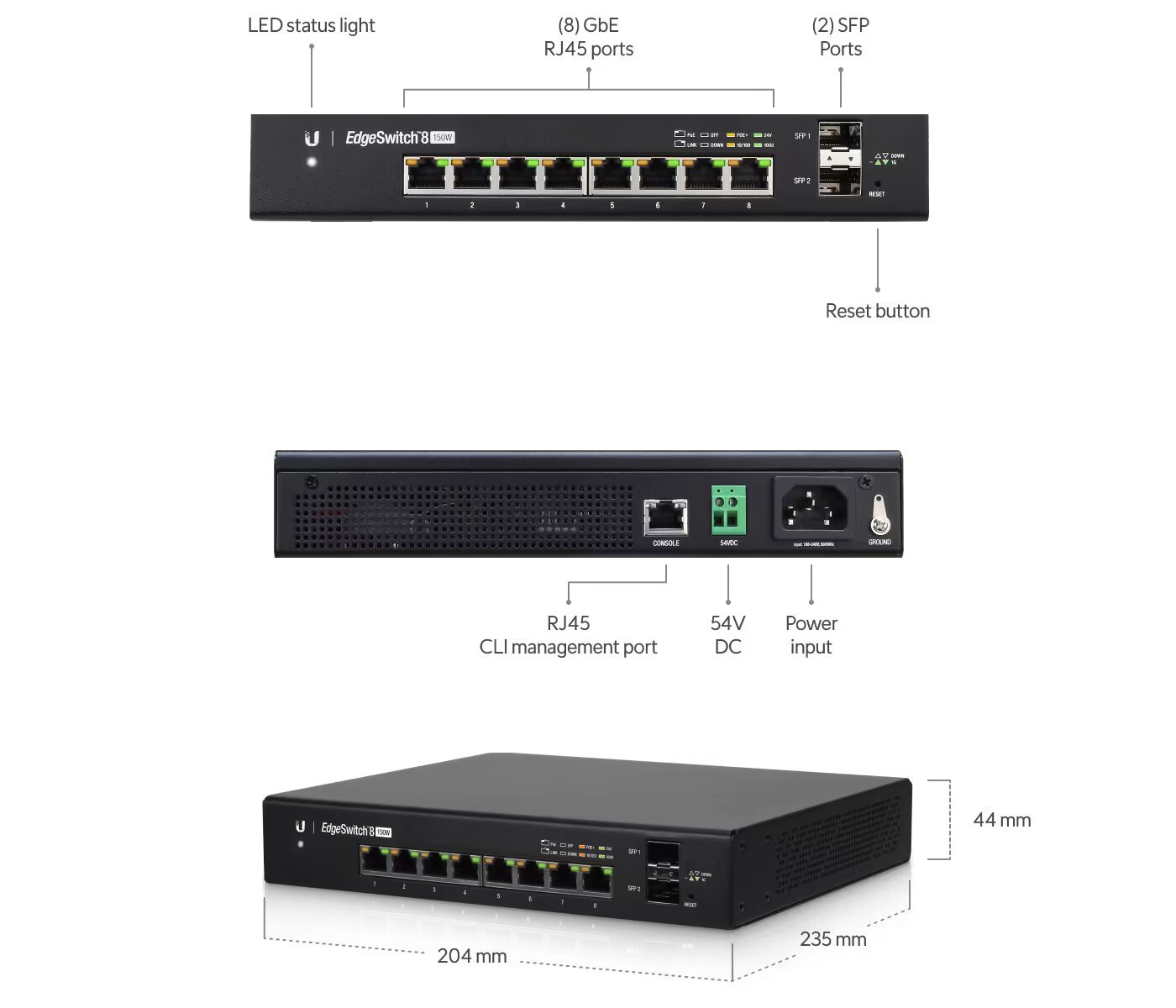

Mudeli võrguliides koosneb 8 Gigabit Ethernet-portist, millest igaüks saab jaotada PoE-toite vastavalt 802.3at/af Passive PoE 24V standarditele. Selline lähenemine võimaldab kaotada vajaduse täiendavate toiteadapterite järele, mis lihtsustab oluliselt võrgu paigutust ja hooldust. Lisaks on konstruktorid pakkunud kaks pesa SFP-moodulite jaoks, et integreerida seade kiudoptilisse võrku.
Igal füüsilisel liidesel on oma LED-indikaator, mis võimaldab kiiresti hinnata selle seisundit ja reageerida rikke korral kiiresti. Üksikasjalikum teave seadme seisundi kohta on kättesaadav graafilise kasutajaliidese kaudu, kust saab lisaks üksikasjalikele logidele ka ajakohast tööstatistikat. See võimaldab teil kiiresti tuvastada probleemi allikas ja seda kõrvaldada.
Mugav PoE+ tugi
Kokku 150 W jagavad kaheksa Gigabit Ethernet-porti, mis pakuvad automaatset IEEE 802.3af/at PoE/PoE+ või 24 V passiivset PoE-d, et lihtsustada teie infrastruktuuri.
Võimas jõudlus
EdgeSwitch pakub tugevat kommutatsioonivõimsust, mille kogu blokeerimata läbilaskevõime on kuni 10 Gbps.
Valguskaabli tagasiside
EdgeSwitch pakub teie kasvavatele võrkudele kiudoptilise ühenduvuse võimalusi. Kaks SFP-porti pakuvad kuni 1 Gbit/s ülesühendusi.
Lülitusvõimsus
EdgeSwitch pakub edastusvõimsust, et töödelda samaaegselt kõikides portides andmevooge liinikiirusel ilma pakettide kadudeta.

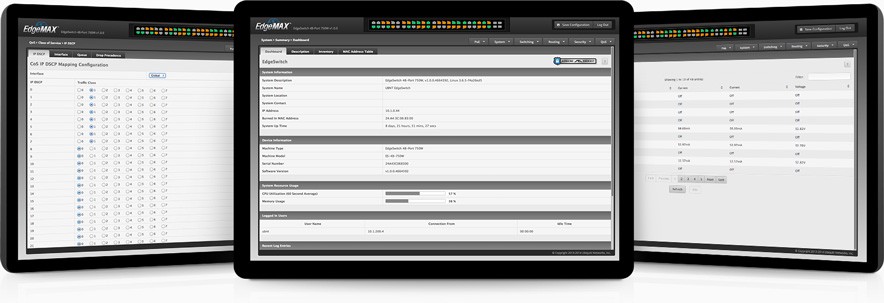

Täiustatud kasutajaliides
Põhjalik kasutajaliides on kergesti õpitav ja võimaldab administraatoritel funktsioone graafilises kasutajaliideses konfigureerida ja jälgida. Edasijõudnud kasutajatele on telneti ja SSH kaudu saadaval käsurea liides (CLI).
Võrdle sarnaste toodetega
| Ethernet Pordid | ||||
| 8 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | |
| PoE välja standardid | ||||
| 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |
| SFP pordid | ||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | |
| USB Pordid | ||||
| Juhtimine | ||||
| Ethernet | Ethernet | Ethernet | Ethernet | |
| Max. energiatarve | ||||
| 150 W | 8 W | 250 W | 500 W | |
| Töötemperatuur | ||||
| -25 °C to 45 °C | -10 °C to 50 °C | -5 °C to 40 °C | -5 °C to 40 °C | |
| Mõõde | ||||
| 204 x 43 x 235 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm | |
| Kaal | ||||
| 1.8 kg | 0.5 kg | 4.7 kg | 6.1 kg | |
| Paigaldamise meetod | ||||
| Lauaplaat | Lauaplaat | Rack-paigaldatud 19" | Rack-paigaldatud 19" | |
| Kujutegur | ||||
| Töölaud | Töölaud | RackMount | RackMount | |
| Ethernet Pordid | 8 x 1 Gbps | 8 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps |
| PoE välja standardid | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) |
| SFP pordid | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ |
| USB Pordid | ||||
| Juhtimine | Ethernet | Ethernet | Ethernet | Ethernet |
| Max. energiatarve | 150 W | 8 W | 250 W | 500 W |
| Töötemperatuur | -25 °C to 45 °C | -10 °C to 50 °C | -5 °C to 40 °C | -5 °C to 40 °C |
| Mõõde | 204 x 43 x 235 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 285.4 mm | 485 x 43.7 x 374.6 mm |
| Kaal | 1.8 kg | 0.5 kg | 4.7 kg | 6.1 kg |
| Paigaldamise meetod | Lauaplaat | Lauaplaat | Rack-paigaldatud 19" | Rack-paigaldatud 19" |
| Kujutegur | Töölaud | Töölaud | RackMount | RackMount |
