Ubiquiti UniFi Switch Enterprise 24 PoE
Ubiquiti Elite Distributor
laos
?
836.08 €
836.08 €
Ubiquiti Elite Distributor
Detailne kirjeldus

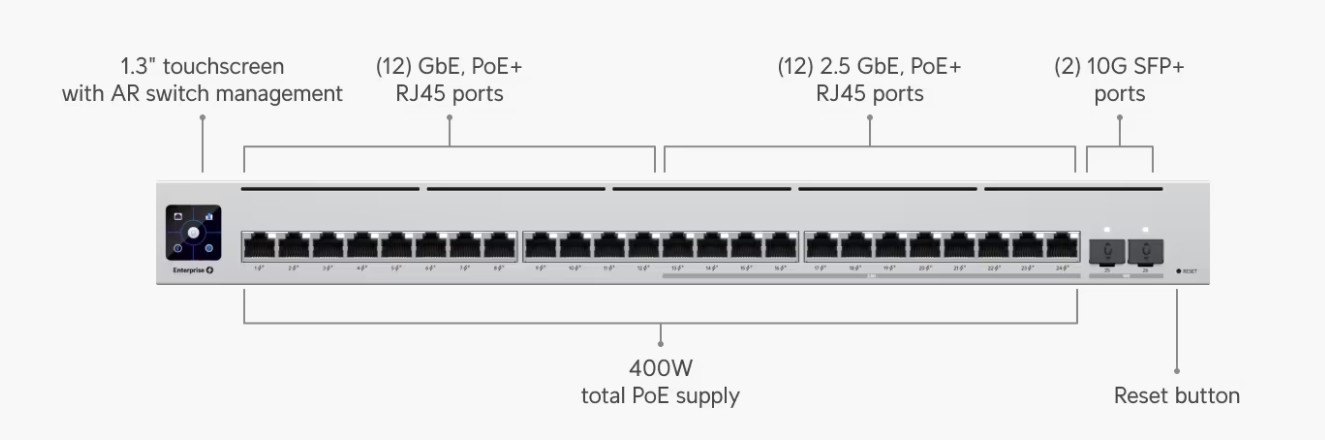

Switch Enterprise 24 PoE (USW Enterprise 24 PoE) on täielikult hallatav Layer 3 kommutaator, millel on (12) 2,5GbE, 802.3at PoE+ RJ45 porti, (12) GbE, 802.3at PoE+ RJ45 porti, (2) 10G SFP+ porti ja 400W PoE koguvõimsus. USW Enterprise 24 PoE-l on ka 1,3-tolline LCM-värviline puuteekraan, mis näitab ülevaatlikult peamisi süsteemi- ja ühendusnähtusi.
Lisaks pakub USW Enterprise 24 PoE täiustatud toiteallika rikke kaitset, kui see on ühendatud SmartPower Redundant Power Systemiga (USP RPS müüakse eraldi). Täiustatud USW-Enterprise-24-PoE jahutussüsteem töötab minimaalse müraga.

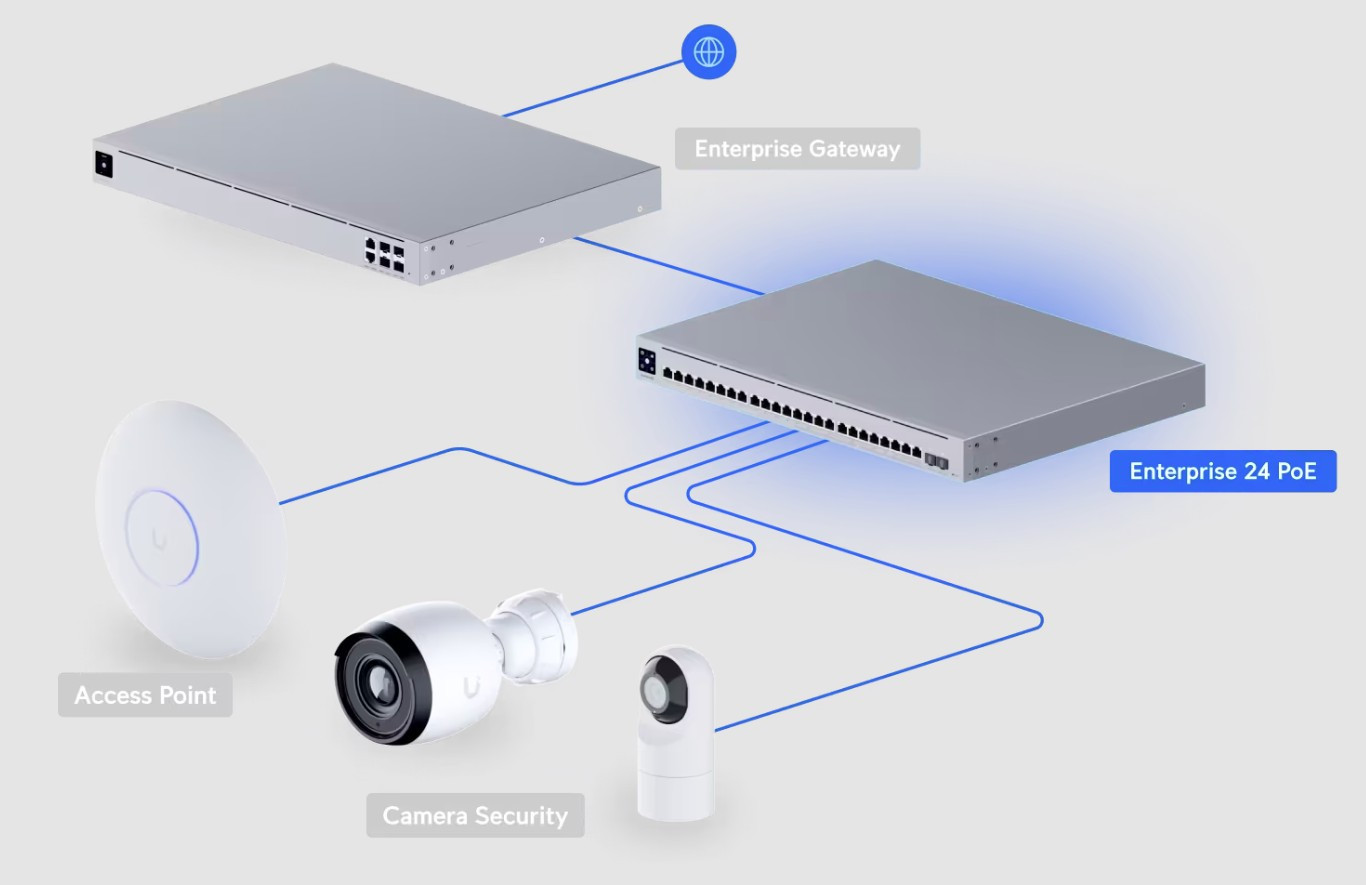

Paigutusskeem
Töötab koos UniFi võrgurakendusega
Täiendatud reaalsus lülitite haldamiseks
Tööstuse esimene AR (augmented reality) lülitite haldamine lihtsustab võrgumuudatusi.
Võrdle sarnaste toodetega
| Ethernet Pordid | ||||
| 12 x 1 Gbps, 12 x 2.5 Gbps | 48 x 2.5 Gbps | 8 x 2.5 Gbps | 24 x 10 Gbps | |
| PoE välja standardid | ||||
| 24 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+) | 8 x 802.3af (PoE), 802.3at (PoE+) | ||
| SFP pordid | ||||
| 2 x 10G SFP+ | 4 x 10G SFP+ | 2 x 10G SFP+ | 2 x 25G SFP28 | |
| Juhtimine | ||||
| Ethernet | Ethernet | Ethernet | Ethernet | |
| Max. energiatarve | ||||
| 550 W | 870 W | 150 W | 100 W | |
| Töötemperatuur | ||||
| -5 °C to 40 °C | -5 °C a 40 °C | -5 °C to 45 °C | -5 °C to 40 °C | |
| Mõõde | ||||
| 442 x 44 x 325 mm | 442 x 44 x 400 mm | 200 x 248 x 44 mm | 442 x 44 x 285 mm | |
| Kaal | ||||
| 5.2 kg | 6.3 kg | 2.44 kg | 4.57 kg | |
| Paigaldamise meetod | ||||
| RackMount | RackMount | Seinakinnitus, Lauaplaat | RackMount | |
| Keskkond | ||||
| Sise | Sise | Sise | Sise | |
| Ethernet Pordid | 12 x 1 Gbps, 12 x 2.5 Gbps | 48 x 2.5 Gbps | 8 x 2.5 Gbps | 24 x 10 Gbps |
| PoE välja standardid | 24 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+) | 8 x 802.3af (PoE), 802.3at (PoE+) | |
| SFP pordid | 2 x 10G SFP+ | 4 x 10G SFP+ | 2 x 10G SFP+ | 2 x 25G SFP28 |
| Juhtimine | Ethernet | Ethernet | Ethernet | Ethernet |
| Max. energiatarve | 550 W | 870 W | 150 W | 100 W |
| Töötemperatuur | -5 °C to 40 °C | -5 °C a 40 °C | -5 °C to 45 °C | -5 °C to 40 °C |
| Mõõde | 442 x 44 x 325 mm | 442 x 44 x 400 mm | 200 x 248 x 44 mm | 442 x 44 x 285 mm |
| Kaal | 5.2 kg | 6.3 kg | 2.44 kg | 4.57 kg |
| Paigaldamise meetod | RackMount | RackMount | Seinakinnitus, Lauaplaat | RackMount |
| Keskkond | Sise | Sise | Sise | Sise |
Ühilduvad tooted
Spetsifikatsioonid
Liidesed
RJ45 pordid
(12) 1 Gbps, (12) 2.5 Gbps
PoE sadamate arv
24 tk
PoE välja standardid
802.3af (PoE), 802.3at (PoE+)
SFP pordid
(2) 10G SFP+
Juhtimine
Ethernet
Võim
Võimsuse meetod
USP RPS alalisvoolu sisend
Toide
Sisemine PSU
Toetatud sisendpinge
100 - 240 V AC
Max. energiatarve
550 W
Füüsikalised Parameetrid
Rack ühikute arv
1U
Värv
Hõbe
Materjal
Metall
Mõõde
442 x 44 x 325 mm
Kaal
5.2 kg
Töötemperatuur
-5 °C kuni 40 °C
Keskkond
Sise
Paigaldamise meetod
Rack Mount
Kujutegur
Rack-paigaldatud 19"
