Tootja osa number
ES-24-250W
Garantii
?
24 kuu
EAN
0810354022241

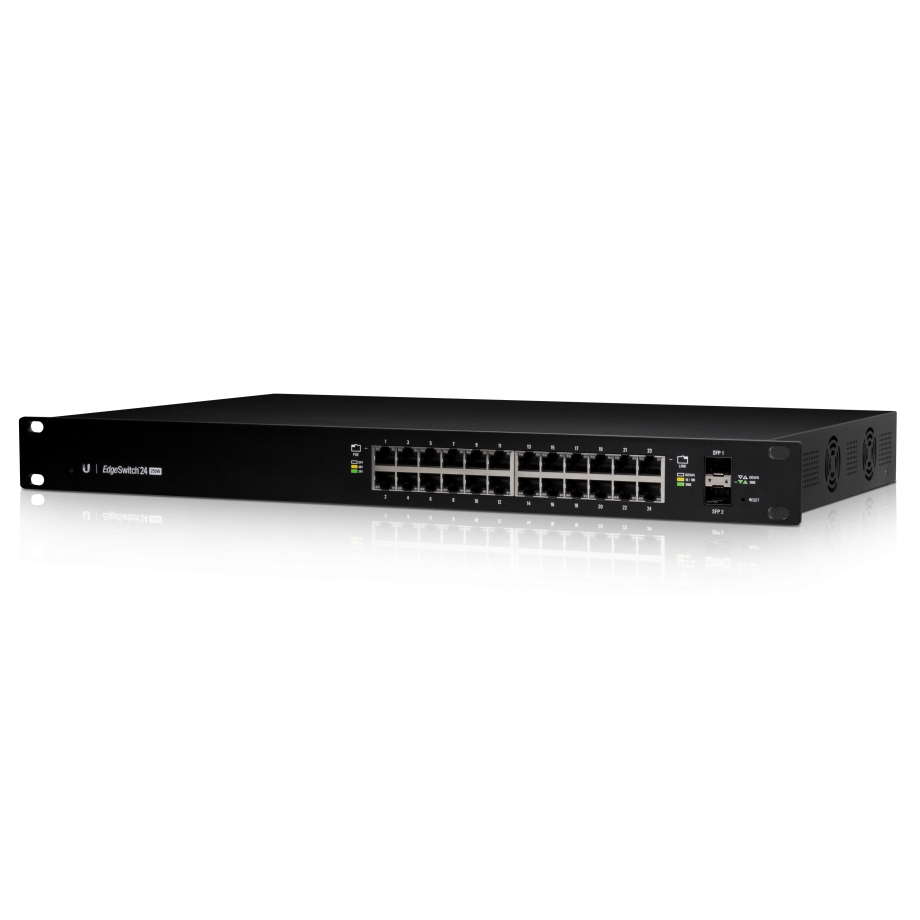

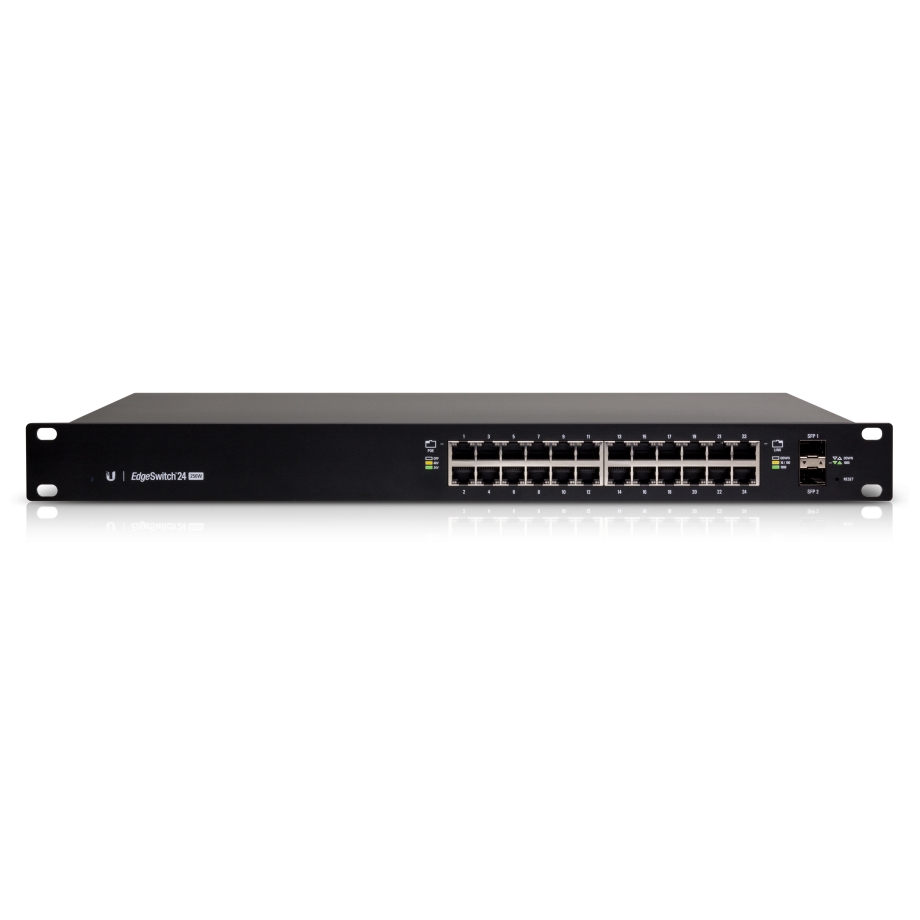

Ubiquiti EdgeSwitch 24 250W
Selle üksuse tootmine on lõpetatud
Soovitame kasutada allpool esitatud toodet
Saadaolevad alternatiivid
Detailne kirjeldus
Võimsad Enterprise Switchi mudelid
EdgeSwitch 24-250W on üks suurima jõudlusega kommutaatorite seeriat. Selle riistvara suudab pakkuda kuni 26 Gbps läbilaskevõimet ja sissetulevaid pakette saab töödelda kuni 38,69 Mpps. Kõik see mõjutab positiivselt kommuteerimise kvaliteeti ja vähendab ka viivituste või paketikadude ohtu võrgu tippkoormuse ajal.

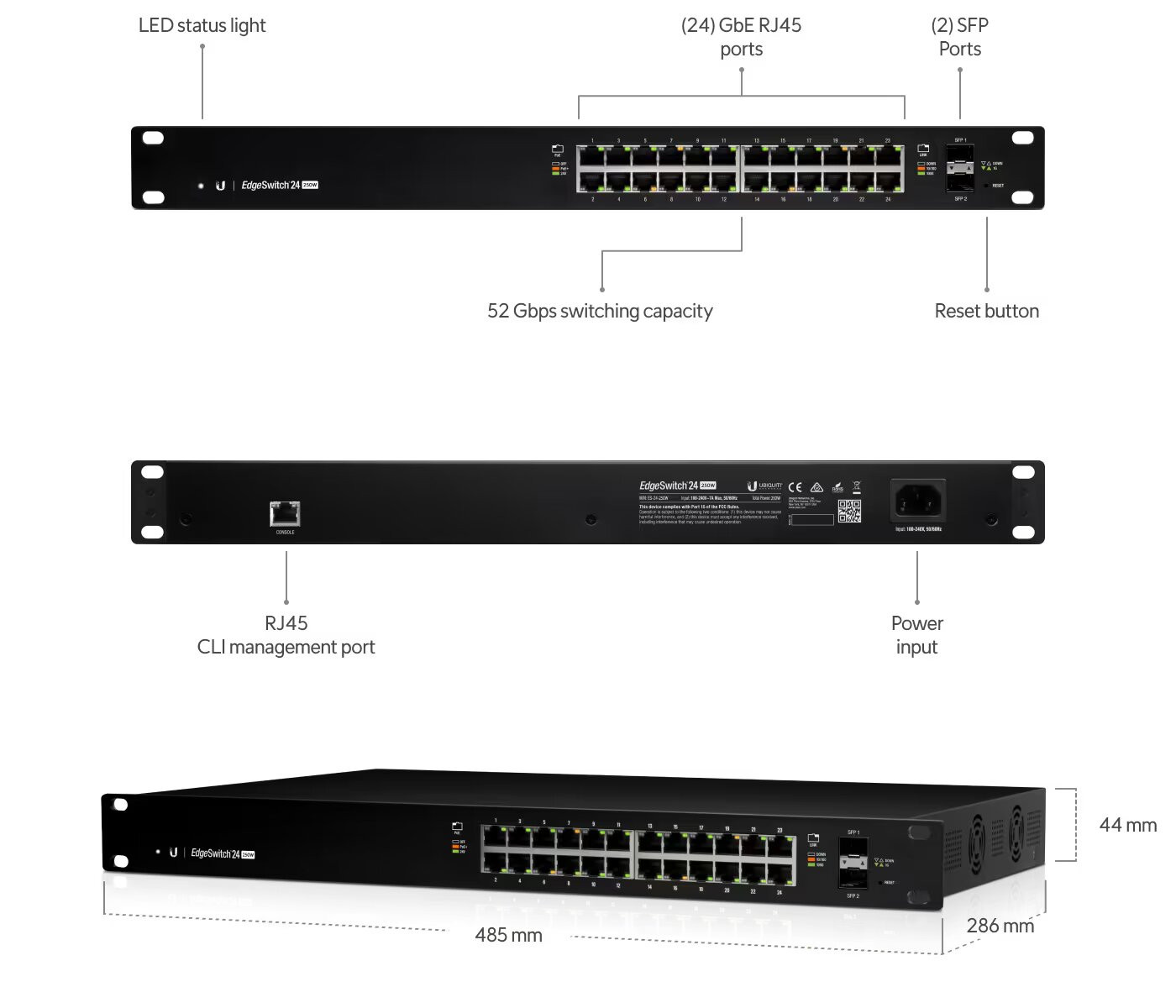

Vaadeldava mudeli võrguliides sisaldab 24 Gigabit Ethernet-porti, samuti kaks pesa SFP-moodulite jaoks. Väärib märkimist, et iga Ethernet-porti saab toita vastavalt standardile 802.3af/at või Passive PoE 24V. Iga pesa on varustatud põhilise LED-indikaatoriga, mis võimaldab kiiresti hinnata liidese seisundit ja õigeaegselt märgata häireid selle töös, aidates sellega kaasa probleemide kiirele kõrvaldamisele.
Ettevõtlusklassi omadused
EdgeSwitch® toetab ulatuslikku komplekti täiustatud Layer-2 kommutatsioonifunktsioone ja protokolle ning pakub ka Layer-3 marsruutimisvõimet.
Mugav PoE+ tugi
EdgeSwitch® omab automaatset IEEE 802.3af/at ja 24 V passiivset PoE-d, et varustada mitut seadet võrgus.
Valguskaabli tagasiside
Kaks SFP-porti toetavad kuni 1 Gbps kiirusega ülesühendusi. Suure võimsusega ülesühenduste jaoks on igas 48-portilises mudelis kaks SFP+ porti kuni 10 Gbit/s ülesühenduste jaoks.

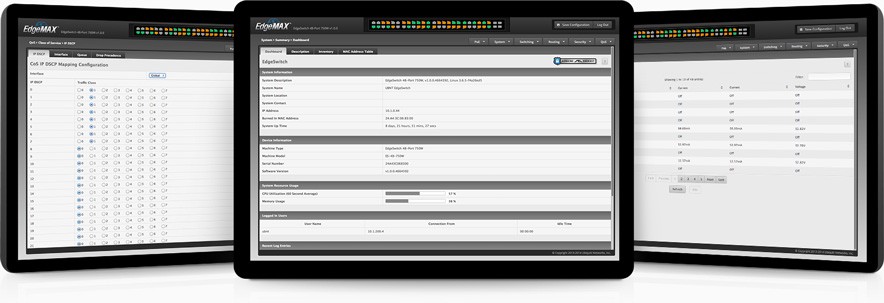

Täiustatud kasutajaliides
Põhjalik kasutajaliides on kergesti õpitav ja võimaldab administraatoritel funktsioone graafilises kasutajaliideses konfigureerida ja jälgida. Edasijõudnud kasutajatele on telneti ja SSH kaudu saadaval käsurea liides (CLI).
Võrdle sarnaste toodetega
| Ethernet Pordid | ||||
| 24 x 1 Gbps | 8 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| PoE välja standardid | ||||
| 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |
| SFP pordid | ||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| USB Pordid | ||||
| Juhtimine | ||||
| Ethernet | Ethernet | Ethernet | Ethernet | |
| Max. energiatarve | ||||
| 250 W | 8 W | 500 W | 150 W | |
| Töötemperatuur | ||||
| -5 °C to 40 °C | -10 °C to 50 °C | -5 °C to 40 °C | -25 °C to 45 °C | |
| Mõõde | ||||
| 485 x 43.7 x 285.4 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 374.6 mm | 204 x 43 x 235 mm | |
| Kaal | ||||
| 4.7 kg | 0.5 kg | 6.1 kg | 1.8 kg | |
| Paigaldamise meetod | ||||
| Rack-paigaldatud 19" | Lauaplaat | Rack-paigaldatud 19" | Lauaplaat | |
| Kujutegur | ||||
| RackMount | Töölaud | RackMount | Töölaud | |
| Ethernet Pordid | 24 x 1 Gbps | 8 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| PoE välja standardid | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 1 x Passive PoE | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) |
| SFP pordid | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP |
| USB Pordid | ||||
| Juhtimine | Ethernet | Ethernet | Ethernet | Ethernet |
| Max. energiatarve | 250 W | 8 W | 500 W | 150 W |
| Töötemperatuur | -5 °C to 40 °C | -10 °C to 50 °C | -5 °C to 40 °C | -25 °C to 45 °C |
| Mõõde | 485 x 43.7 x 285.4 mm | 207 x 31.1 x 90 mm | 485 x 43.7 x 374.6 mm | 204 x 43 x 235 mm |
| Kaal | 4.7 kg | 0.5 kg | 6.1 kg | 1.8 kg |
| Paigaldamise meetod | Rack-paigaldatud 19" | Lauaplaat | Rack-paigaldatud 19" | Lauaplaat |
| Kujutegur | RackMount | Töölaud | RackMount | Töölaud |
