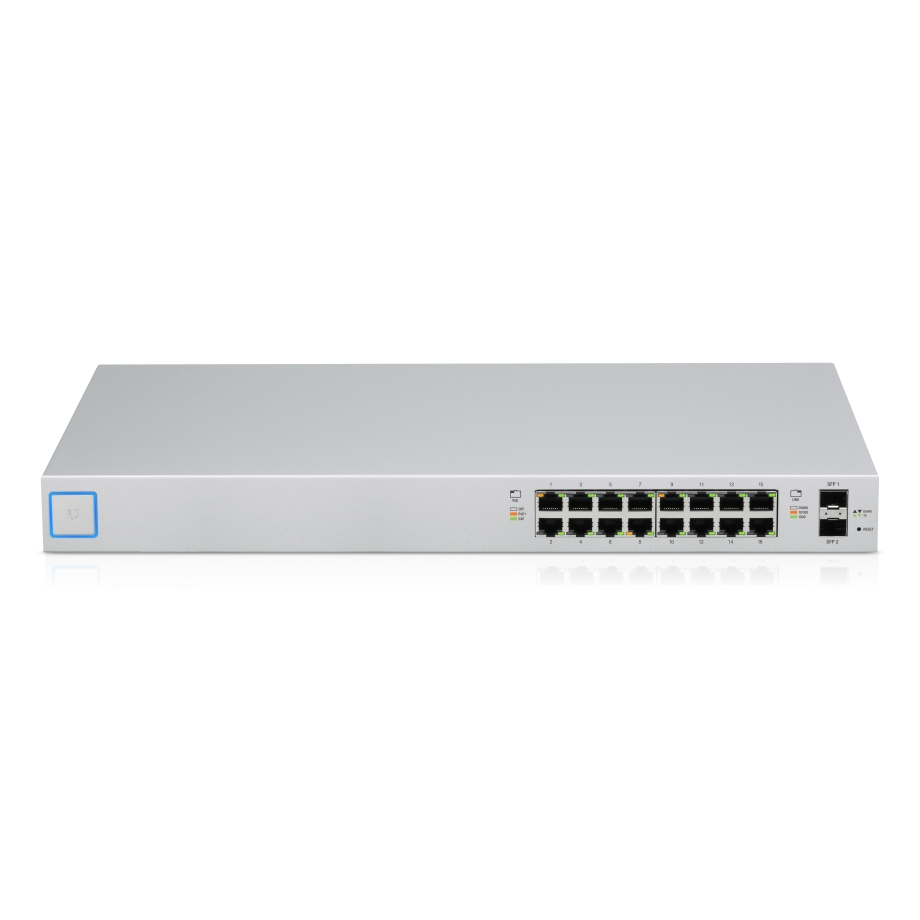

Ubiquiti UniFi Switch 16 150W
Selle üksuse tootmine on lõpetatud
Soovitame kasutada allpool esitatud toodet
Ubiquiti UniFi Switch Standard 16 PoE
USW-16-POE
Saadaolevad alternatiivid
Detailne kirjeldus
Võrdle sarnaste toodetega
| Ethernet Pordid | ||||||
| 16 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| PoE välja standardid | ||||||
| 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |||
| SFP pordid | ||||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| Juhtimine | ||||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Max. energiatarve | ||||||
| 150 W | 25 W | 250 W | 56 W | 500 W | 150 W | |
| Töötemperatuur | ||||||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C | |
| Mõõde | ||||||
| 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 443 x 43 x 286 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm | |
| Kaal | ||||||
| 2.89 kg | 2.6 kg | 4.7 kg | 3.65 kg | 6.1 kg | 1.65 kg | |
| Paigaldamise meetod | ||||||
| RackMount, Seinakinnitus | RackMount | RackMount | RackMount | RackMount | Seinakinnitus, Lauaplaat | |
| Ethernet Pordid | 16 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| PoE välja standardid | 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | ||
| SFP pordid | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP |
| Juhtimine | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Max. energiatarve | 150 W | 25 W | 250 W | 56 W | 500 W | 150 W |
| Töötemperatuur | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C |
| Mõõde | 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 443 x 43 x 286 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm |
| Kaal | 2.89 kg | 2.6 kg | 4.7 kg | 3.65 kg | 6.1 kg | 1.65 kg |
| Paigaldamise meetod | RackMount, Seinakinnitus | RackMount | RackMount | RackMount | RackMount | Seinakinnitus, Lauaplaat |
Ühilduvad tooted
Spetsifikatsioonid
Liidesed
RJ45 pordid
(16) 1 Gbps
PoE sadamate arv
16 tk
PoE välja standardid
Passiivne PoE, 802.3af (PoE), 802.3at (PoE+)
SFP pordid
(2) 1G SFP
Kommunikatsiooniliides
RJ45
Juhtimine
Ethernet
Võim
Toide
Sisemine PSU
Toetatud sisendpinge
100 - 240 V AC
Max. energiatarve
150 W
Füüsikalised Parameetrid
Rack ühikute arv
1U
Värv
Hõbe
Mõõde
443 x 43 x 221 mm
Kaal
2.89 kg
Töötemperatuur
-5 °C kuni 40 °C
Keskkond
Sise

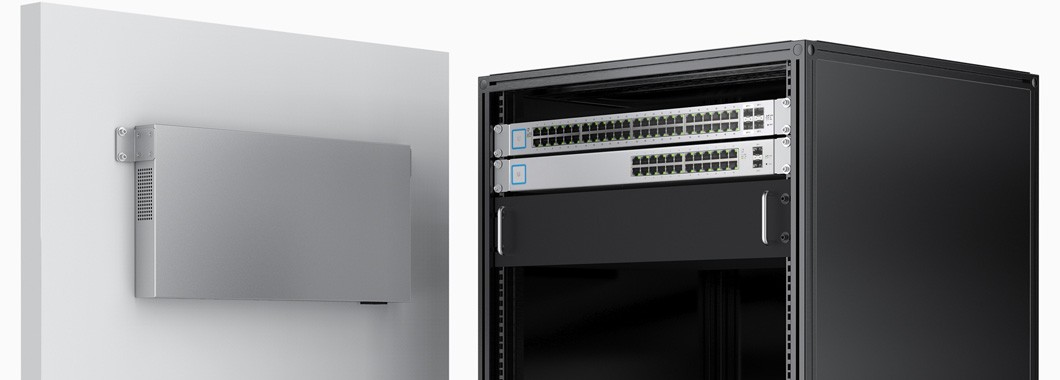

Paigaldamise meetod
Rack Mount, Seinakinnitus
Kujutegur
Rack-paigaldatud 19"
