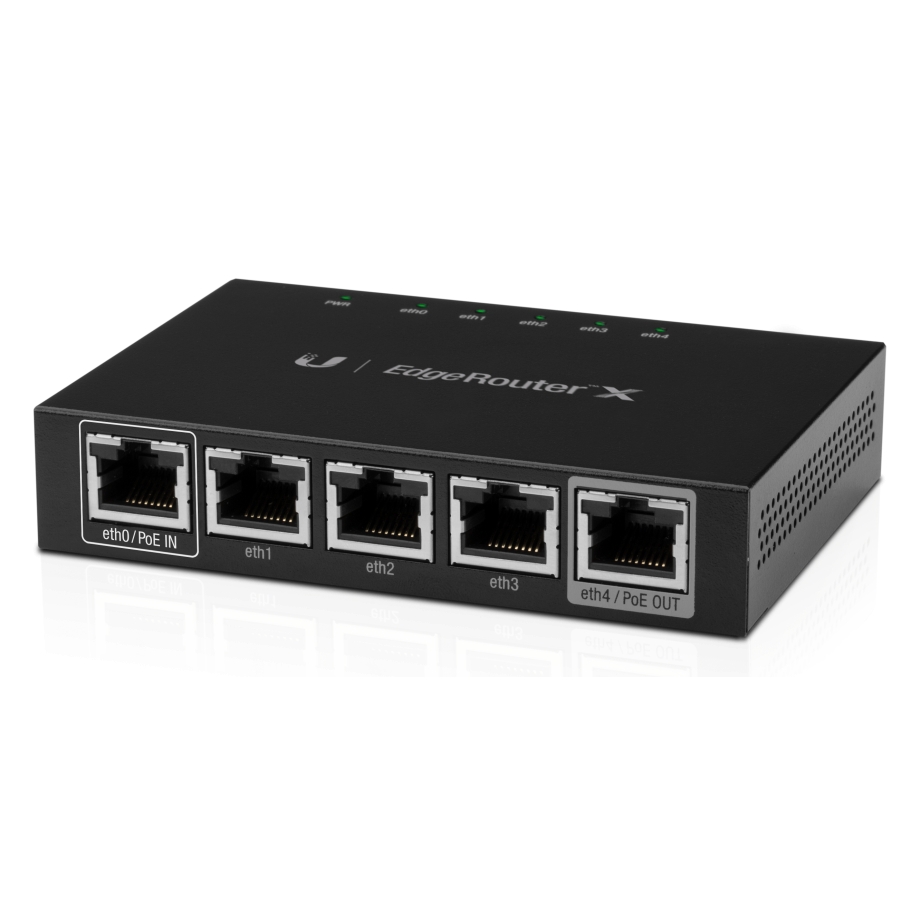

Ubiquiti EdgeRouter X
Selle üksuse tootmine on lõpetatud
Soovitame kasutada allpool esitatud toodet

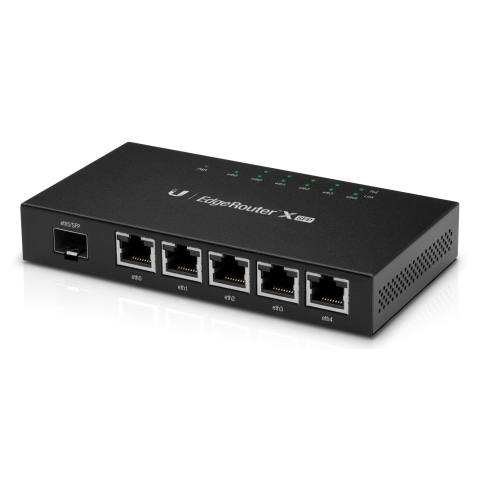

Ubiquiti EdgeRouter X SFP
ER-X-SFP
Saadaolevad alternatiivid
Detailne kirjeldus

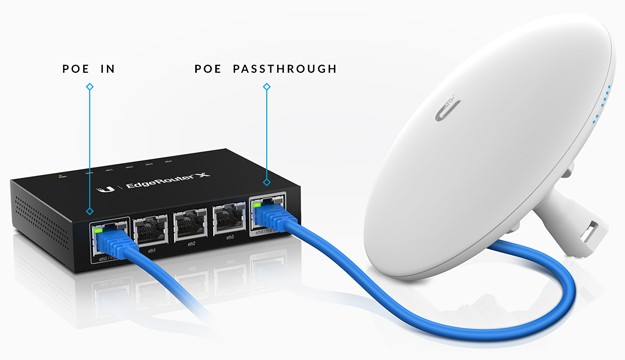

Mitmekülgne PoE-funktsioon
Seadme füüsiline võrguliides koosneb 5 gigabit Ethernet-pordist ning ühendused eth0 ja eth4 on omavahel ühendatud PoE Passthrough abil. See tähendab, et Passiivse PoE 24V toite andmisega on võimalik jagada seda teise porti. Nii saate toita mitte ainult ruuterit ennast, vaid ka teist ühendatud seadet, mis toetab vastavat PoE-standardit. Seadet on võimalik toita ka tavalisest 220V võrgust 12VDC pistikupesa kaudu - selleks on pakendis spetsiaalne toiteadapter.
EdgeRouter X ruuter on varustatud üsna produktiivse riistvaraga, mille hulka kuulub kahetuumaline protsessor taktsagedusega 88 MHz ja 256 MB mälu. Kõik see võimaldab töödelda sissetulevaid pakette kiirusega kuni 1 Gbps, millest piisab stabiilseks tööks ka tippkoormuse korral. Samal ajal on pakettide kadumise oht minimaalne.

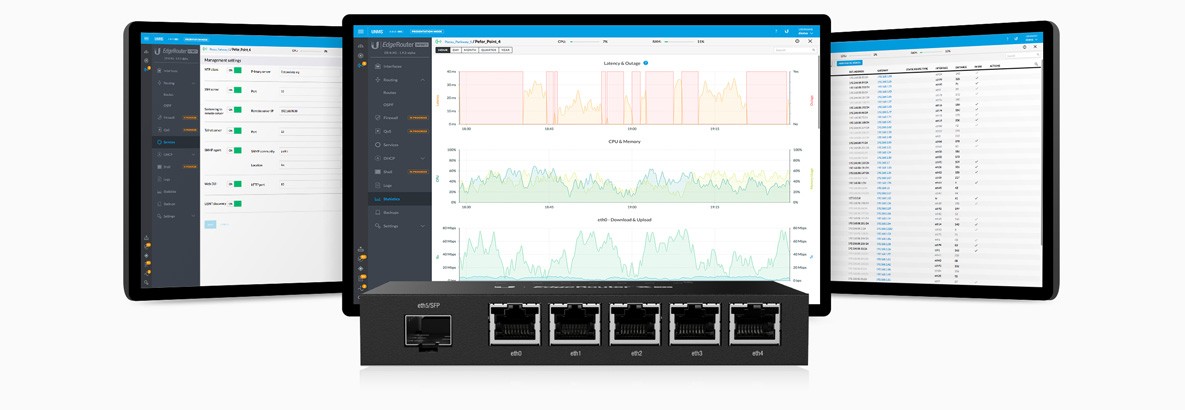

Tsentraliseeritud haldamine
EdgeRouter™ X-i toetab ja haldab UNMS™, mis on intuitiivse kasutajaliidesega terviklik rakendus. Üks juhtimistasand haldab registreeritud EdgeMAX®-seadmeid mitmes kohas.
Võrdle sarnaste toodetega
| Ethernet pordid | ||||||
| 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps | |
| PoE välja standardid | ||||||
| 1 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 5 x Passive PoE | |||
| SFP pordid | ||||||
| 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | 1 x 1G SFP | ||
| USB uostai | ||||||
| 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | |||
| Kiibikomplekti | ||||||
| Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc | |
| RAM-i mah | ||||||
| 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB | |
| Storage mälu | ||||||
| 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB | |
| Max. energiatarve | ||||||
| 5 W | 13 W | 24 W | 90 W | 100 W | 55 W | |
| Paigaldamise meetod | ||||||
| Lauaplaat | Lauaplaat | Lauaplaat | RackMount, Seinakinnitus, Lauaplaat | Lauaplaat | Lauaplaat | |
| Ethernet pordid | 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps |
| PoE välja standardid | 1 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 5 x Passive PoE | ||
| SFP pordid | 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | 1 x 1G SFP | |
| USB uostai | 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | ||
| Kiibikomplekti | Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc |
| RAM-i mah | 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB |
| Storage mälu | 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB |
| Max. energiatarve | 5 W | 13 W | 24 W | 90 W | 100 W | 55 W |
| Paigaldamise meetod | Lauaplaat | Lauaplaat | Lauaplaat | RackMount, Seinakinnitus, Lauaplaat | Lauaplaat | Lauaplaat |
Ühilduvad tooted
Spetsifikatsioonid
Liidesed
RJ45 pordid
(5) 1 Gbps
PoE sadamate arv
1 tk
PoE välja standardid
Passiivne PoE
Juhtimine
Ethernet
Süsteemi Spetsifikatsioon
Kiibikomplekti
Dual-Core 880 MHz, MIPS1004Kc
RAM-i maht
256 MB
Storage mälu
256 MB
Võim
Võimsuse meetod
AC/DC Adapter, 24V passiivne PoE
Toide
Väline AC/DC Adapter
Toetatud sisendpinge
9 - 26 V DC
Max. energiatarve
5 W
Toitepistik
DC pistik 2.1 x 5.5 mm
PSU / POE adapter
12 V DC 0.5 A
Füüsikalised Parameetrid
Värv
Must
Mõõde
110 x 75 x 22 mm
Kaal
0.175 kg
Töötemperatuur
-10 °C kuni 45 °C
Paigaldamise meetod
Lauaplaat
Kujutegur
Töölaud
Pakend Sisaldab
Väline toiteallikas
Kaasas
