QuSpot TRB500 jaoks
laos
?
160.11 €
160.11 €
Detailne kirjeldus

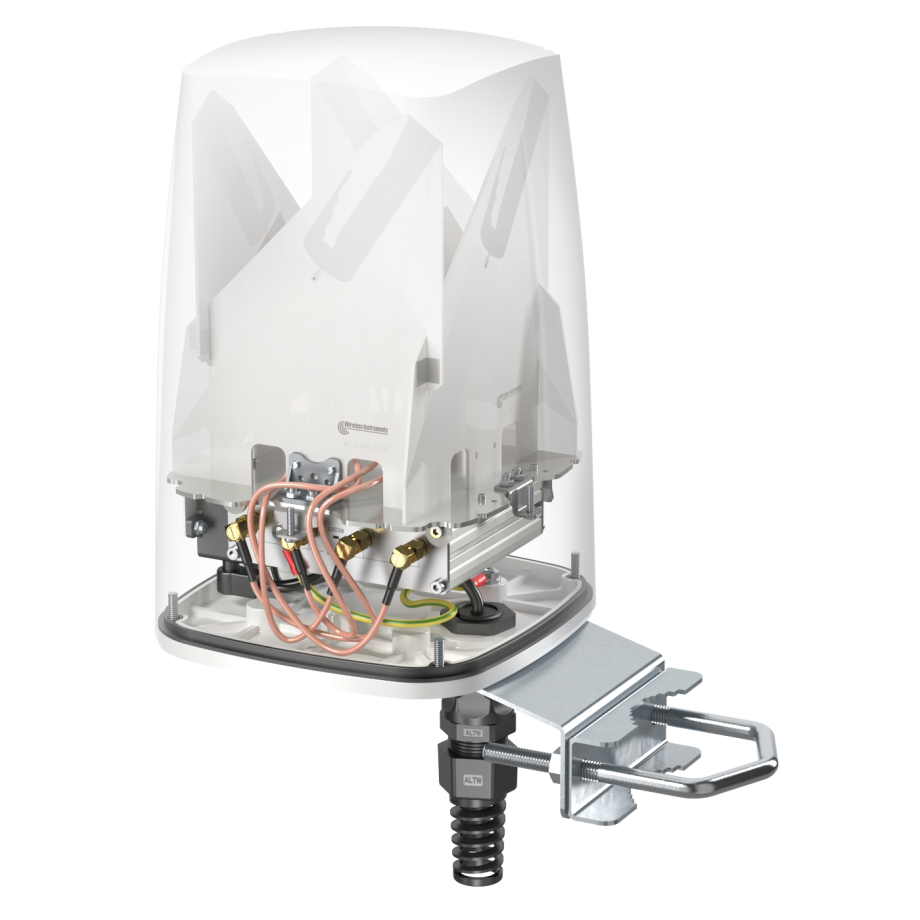

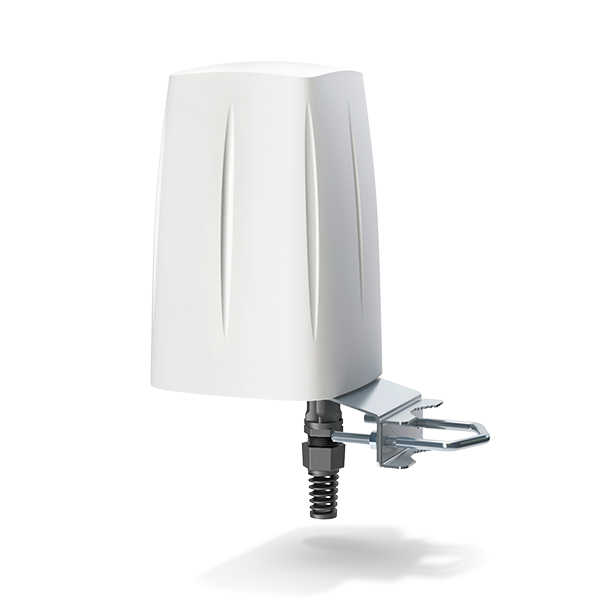

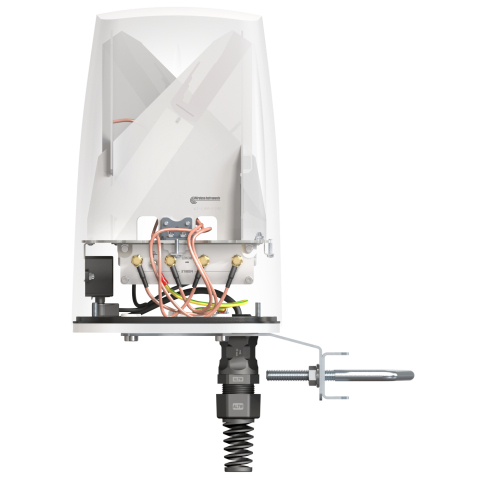

QuSpot for TRB500 on välisantenn, mis on mõeldud usaldusväärse traadita ühenduse loomiseks erinevates keskkondades. See toode on kõik-ühes lahendus, mis integreerib suure võimendusega kõikehõlmava 5G-antenni koos RUTX50-ga ühte IP67-korpusesse. Selline integreerimine võimaldab uute TRB500 välijuhtimislahenduste rakendamist.
QuSpot for TRB500 on ideaalne lahendus traadita ühenduvuseks välistingimustes liikuvates rakendustes, nagu transport, jaht, paadid ja telkimine, aga ka suure signaalitihedusega linnakeskustes. Maksimaalse jõudluse saavutamiseks on kaasas Gigabit PoE splitter.
Toetatud LTE / 5G sagedusalad: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30,33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67,68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90,n95, n97, n98, n100, n101.
Tehnilised andmed
Ühilduvad tooted
Spetsifikatsioonid
Mobiilsidevõrk
Mobiilsidevõrgu genereerimine
4G (LTE), 5G (NR)
Antenn
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.617 - 0.96 (GHz) 2 (dBi), 1.7 - 2.7 (GHz) 4 (dBi), 3.3 - 4.3 (GHz) 4.5 (dBi)
Mobiilse Antenni Võimendus
2 dBi, 4 dBi, 4.5 dBi
Kiirguse laius
360 °
Polarisatsioon
Vertikaalne
VSWR
< 2.5
Impedants
50 Ω
Füüsikalised Parameetrid
Materjal
Alumiinium, ABS plastikust, Polütetrafluoroetüleen
Sissepääsu kaitse kood
IP67
Mõõde
160 x 160 x 240 mm
Kaal
1.5 kg
Töötemperatuur
-40 °C kuni 75 °C
Keskkond
Välistingimustes
Paigaldamise meetod
Pole Mount
Pakend Sisaldab
Väline toiteallikas
Ei kuulu komplekti
