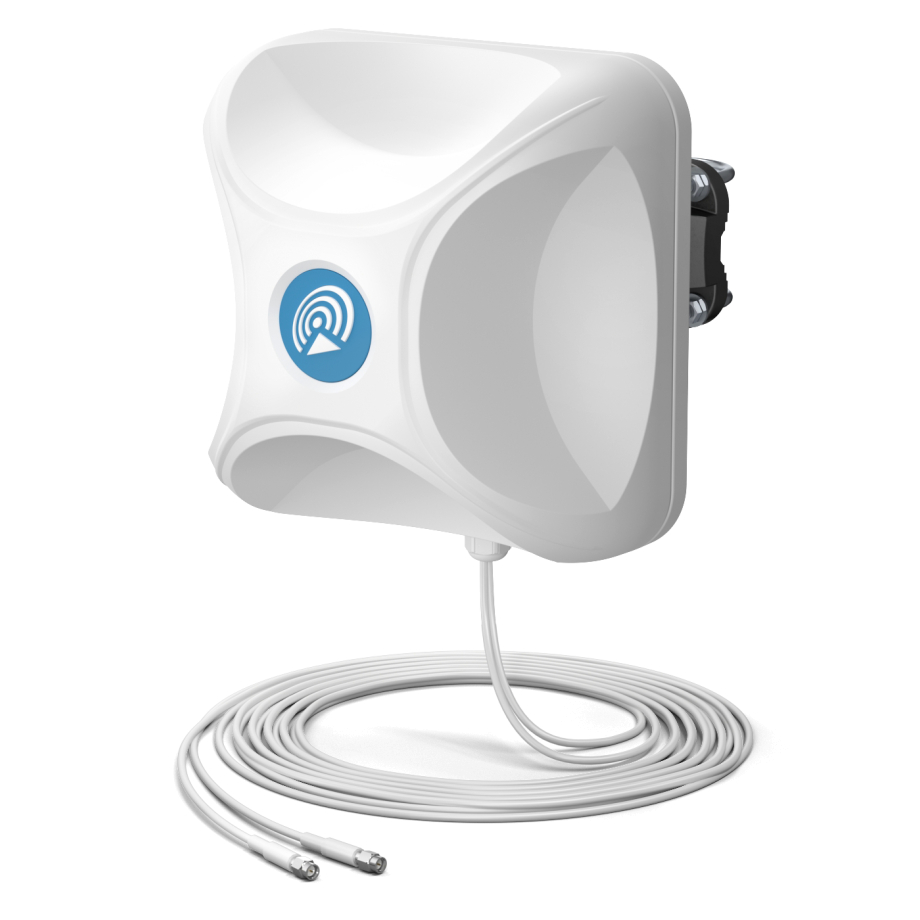

QuPanel 5G/LTE Global MIMO 2x2, 5m
uus toode
uus toode
laos
?
173.26 €
173.26 €
Detailne kirjeldus
Tehnilised andmed
Ühilduvad tooted
Spetsifikatsioonid
Mobiilsidevõrk
Mobiilsidevõrgu genereerimine
4G (LTE), 5G (NR)
Antenn
Antenni Disain
Paneel
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Mobiilse Antenni Võimendus
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
Kiirguse laius
80 °
VSWR
< 3
Impedants
50 Ω
Pistik
RF pistikud
(2) SMA Male
Füüsikalised Parameetrid
Materjal
Alumiinium, ABS plastikust, Klaaskiud, Polütetrafluoroetüleen
Sissepääsu kaitse kood
IP67
Mõõde
486 x 292 x 106 mm
Kaal
2.8 kg
Töötemperatuur
-40 °C kuni 80 °C
Keskkond
Välistingimustes
Paigaldamise meetod
Seinakinnitus, Pole Mount
